10.2" Tft Screen Veterinary Gas Anesthesia Machine X30

Ask Lasest Price
Brand Name :	siriusmed
Model Number :	x30 vet
Certification :	CE,ISO,FSC,
Payment Terms :	T/T

Add to Cart

Product Details
Company Profile

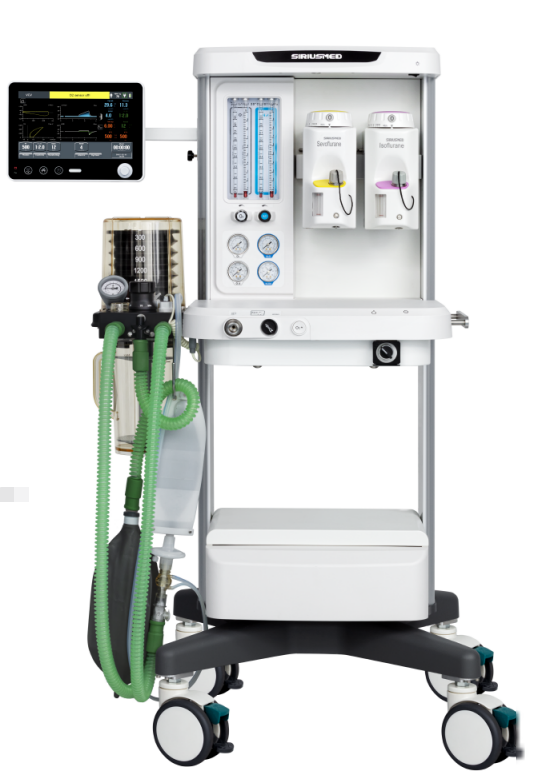

10.2" Tft Screen Veterinary Gas Anesthesia Machine X30

Vet Anesthesia Gas Machine, screen with touch, AGSS, PEEP valve, CO2 absorber circuit

*Tidal Volume 50~1500mL
*Ventilation Mode: VCV, PCV, SIMV-VC, SIMV-PC, PSV(BACKUPS), MAN./SPONT
*10.4" TFT LCD color screen with touch screen
*Built-in battery
*Built-in electronic PEEP valve
*Lung mechanics papameter and loops (P-V, V-F,P-F )
★Gas supply: O2,N2O
★Flowmeter: 4 tubes Flowmeter
★O2 flush

Technical Specifications
Mode of Ventilation	VCV, PCV, SIMV-VCV, SIMV-PCV, PS with Backup mode(VCV or PCV) Manual/Spontneous with respiratory monitoring PRVC, SIMV-PRVC(Optional)
Ventilation Settings
Tidal Volume	50-1500ml 10-50ml(optional)
Frequency	1-100bpm
Tinsp	0.1 - 10.0S
I:E	4:1 - 1:10
Pause	0-50%
PEEP	OFF, 3-20
Pressure Support	0-80cmH2O
Pressure Control	5-80cmH2O
Fsens	0.5-20L/min
Psens	0-20cmH2O
Tslope	0-2S
Esens	5-80%
Monitoring
VTI	0-2500ml
VTE	0-2500ml
MV exp	0-60L/min
MV spn	0-60L/min
ftotal	0-100bpm
fspn	0-100bpm
I:E	9:1-1:99
Ppeak	0-100cmH2O
Pmean	0-100cmH2O
PEEP	0-100cmH2O
Pplat	0-100cmH2O
Pmin	-20-100cmH2O
FiO2(Optional)	15-100%
Cst	0-300ml/cmH2O
Rst	0-600ml/cmH2O/L/S
EtCO2(Optional)	0-13.3%
FtCO2(Optional)	0-13.3%
Alarms
Minute Volume
Low Limit Range	0-98L
High Limit Range	1-99L
Breath Rate
Low Limit Range	0-79bpm
High Limit Range	1-100bpm
Airway Pressure
Low Limit Range	0-98cmH2O
High Limit Range	6-99cmH2O
FiO2
Low Limit Range	18-99%
High Limit Range	19-100%, OFF
Expiratory Tidal Volume
Low Limit Range	OFF, 10-2990ml
High Limit Range	20-3000ml
EtCO2(Optional)
Low Limit Range	0-13.2%
High Limit Range	0.1-13.3%
Apnea Time
High Limit Range	10-60S
Electrical Specfications
Power
Mains Power Supply	100-240VAC 50/60 Hz
Current Input	2A max
Power Consumption	Approx. 90VA
Backup Battery
Battery Type	Lithium Battery
Operating Time	More than 90 min
Charge Time	4 hours max
Pneumatic Specfications
Gas Supply	O2/N2O or O2/Air
Gas Supply Requirement	280-600kPa
Environmental Specifications
Operating Environment
Temperature	10-40℃
Humidity	5-95%(Noncondensing)
Barometric	70-106kPa
Storage Environment
Temperature	-20-60℃
Humidity	5-95%(Noncondensing)
Barometric	50-106kPa
Machine Specifications
Height	1370mm
Width	900mm
Depth	630mm
Weight	90kg
