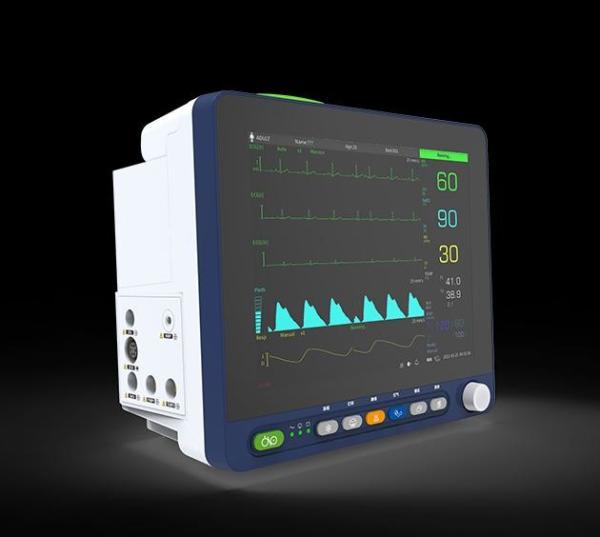

Cheap Patient Monitor UM2012 Unique inclined panel Siriusmed Meical
Features
1. Tilted 12.1 inch LCD high definition display.
2. Equipped with accessory box, save more space.
3. The rounded chamfer design with a sense of technology.
4. Connect with the central monitoring system for remote and
wireless monitoring.
5. Large capacity storage, with power failure protection.
6. The integrated module design ensures the safety, reliability and
stability of monitor.
7. 5 display modes: large character, OxyCRG Display Mode, trend
table data and other multiple interfaces.
8. The dexterous handle makes it convenient for medical staff to
carry.
| Enclosure |
| Weight | 4.6kg(10.69lb) |
| Dimensions | 178mmWx285mmHx310mmD (12.76in.Wx11.2in.Hx12.2in.D) |
| Display |
| Screen size | 12.1 inch diagonal high-resolution |
| Screen type | TFT (Thin Film Transistor) Active Matrix LCD |
| Resolution | 1024 X 768 pixels. |
| SpO2 |
| Measurement range | 0 to 100% Functional Saturation |
| Accuracy | 70-100%,±2%; <70% unspecified |
| Resolution | 1% |
| Display wave speed | 10.00 mm/sec |
| Temp |
| Measurement range | 0 to 50℃ / 32 to 122 °F |
| Accuracy | ± 0.2℃ plus the temperature sensor tolerance |
| Resolution | 0.1℃ |
| Battery | Lithium battery with 4,400mAh will typically provide 8 hours of monitoring with no external communication, no audible
alarm sound, and at an ambient temperature of 25℃ |
| Type | Lithium Battery, 4,400mAh, DC 11.1V |
| Voltage | AC 100-240V, 50-60Hz, SOVA |
| Trend |
| Memory | Saves a total of 120 hours of data events; saves date and time,
alarm conditions, measurements |
| Tabular format | One table for all parameters |
